REVOLUTION® Floor Flood Feeder for Broilers

The Simplicity of Floor Flood Feeding with Higher Performance and Control

Bird Weight – Up to 4.5 lbs. (2.0 kg)
Recommended Feeder Model – 12-spoke, 60 to 90 birds to pan
Bird Weight – 4.5-7.0 lbs. (2.0-3.1 kg)
Recommended Feeder Model – 12- or 8-spoke, 55-75 birds to pan
Bird Weight – 7.0 lbs. (3.1 kg) or greater
Recommended Feeder Model – 8-spoke, 45-65 birds to pan
Designed to fit the natural way birds eat
  • The scalloped grill edge conforms to the shape of today’s birds. Chore-Time’s REVOLUTION® Feeder Pan Assembly is 1/2 inch (12.7 mm) lower at the eating area.
  • The high-clearance grill lets birds freely lift their heads to allow natural movement while eating.
  • Because birds don’t have to back out of the feeder to swallow, more feed is consumed and less feed ends up on the floor.
  • Offered in both solid and removable top options.
feature
Flood feeding for fast starts and easy brooding
  • The REVOLUTION® Floor Flood Feeder gives even the smallest chicks easy access.
  • The feeder quickly teaches birds that they can reach the feed without climbing inside.
  • It starts training birds immediately to efficiently consume feed … with no extra effort and no extra waste.
feature
Controlled feeding for profitable grow-outs
  • The REVOLUTION® Floor Flood Feeder adjusts to your management style. Raise the feeders higher to close the flood windows as the birds grow.
  • Or, choose to manually lock the windows into flood position at any pan height to provide a high feed level at any growth stage.
  • You can also choose one of six grow-out feeding levels to optimize days to maturity or final market weights.
  • More feed capacity eliminates transition “stall” when pan is raised and flood windows close.
feature
Photos & Videos
Photos:
Videos:
Literature
Manuals
Specifications
White Papers
thumbnail
Guide to Chore-Time® Broiler Feeding Systems
(CT-2613/202201)
thumbnail
Útmutató a Chore-Time® brojler-etetőrendszerekhez
(CT-2613-HU/202201)
thumbnail
Ghid pentru sistemele de furajare Chore-Time® pentru puii de carne
(CT-2613-RO/202201)
thumbnail

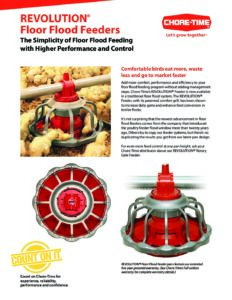

REVOLUTION® Floor Flood Feeders
(CT-2596/202202)
thumbnail
Floor Flood Feeder REVOLUTION®
(CT-2596-FR/202202)
thumbnail

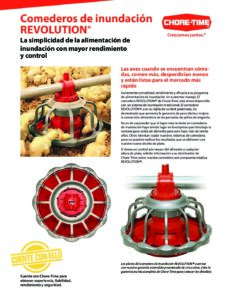

Comederos de inundación REVOLUTION®
(CT-2596-ES/202202)
thumbnail

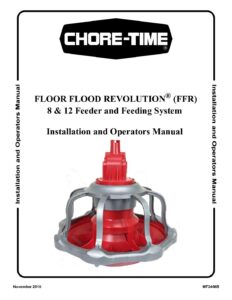

MF2408D Floor Flood REVOLUTION® (FFR) 8 & 12 Feeder and Feeding System Install and Operate
July 2023
thumbnail
MF2408D Floor Flood REVOLUTION® (FFR) 8 & 12 Feeder and Feeding System Install and Operate
July 2023
thumbnail
REVOLUTION® Floor Floor Broiler Feeder Specifications
thumbnail
REVOLUTION® Floor Flood Broiler Feeder Farm Results
thumbnail
REVOLUTION® Floor Floor Broiler Feeder Specifications
thumbnail
REVOLUTION® Floor Flood Broiler Feeder Farm Results
