A-Frame Cage System for Eggs

Chore-Time’s A-Frame Cage System for caged layers provides an excellent environment for egg production and maximum feed savings, together with two options for manure handling. Pullet systems are also available.

Sturdy Construction

Chore-Time cages are quality-built in North America. Solid construction and heavy-duty materials combine with our innovative design for years of superior performance.

Composite Mesh Floor

Chore-Time’s composite mesh floor uses smaller mesh openings at the front of the cages for an improved bird environment and reduced bird mortality.

feature
Sturdy Welded A-Frames

Rugged A-frame stands provide durable support for Chore-Time’s A-frame cages without the need for truss rods. All system components, including cages and feed troughs, tie directly into our projection-welded A-frame cage support system for added stability and long life.

Other Cage Features
  • Cages are available in 2-high to 5-high models in cage rows up to 750 feet (230 meters) long.
  • Galfan® and galvanized steel construction for durability and corrosion resistance.*
  • Gentle 8-degree floor slope for easy egg roll-out.
  • Steep cage backs for improved manure roll-off.
  • Choice of dropping board scraper or curtain-back model (features thickest available curtain).
  • Rust-free PVC rail supports dropping boards.
  • Boards are available in plywood or plastic.
  • Flexible cage floor is better for birds’ feet.
  • Slant front or straight front cage design.
  • Three door styles including standard pull-up door, push-in door, or spring-loaded push-in door.
  • Distance from cage to egg tray protects eggs from dirt and damage and eases egg roll-out.
  • Step rails are available to protect feed trough and egg tray.
  • System is covered by Chore-Time’s generous cage warranty and solid backing. (See Chore-Time’s full written warranty for complete warranty details.)

*Galfan is not owned or licensed by CTB, Inc. and is the sole property of its respective owner.

Curtain-Back Manure Handling System
  • Steep cage backs for improved manure roll-off
  • Thickest available curtain material for easier installation and greater durability.
  • Curtains are fastened using a plastic extrusion – no rings to rust away.
  • Tiers are offset to minimize drop-through.
  • Use with high-rise houses or with a dropping board scraper under each cage row.
  • Many styles available to match various building widths.
  • Use with Chore-Time’s TURBO HOUSE® System for even dryer, more manageable manure; uniform temperature in all parts of the cage building; less ammonia and odors, and lower mortality.
Dropping Board Scraper Manure Handling System
  • Each tier except the bottom has its own set of plywood or plastic dropping boards, sloped toward the back.
  • The scraper features offset blades which help prevent plugging and hold tight to the boards for smooth, even scraping.
  • Drive units feature reliable 1/4 HP motors and operate scrapers in cage row lengths up to 750 feet (230 meters).
  • Drive mechanism is designed to protect critical parts from damage should a problem occur.
  • Use with Chore-Time’s TURBO HOUSE® System for even dryer, more manageable manure; uniform temperature in all parts of the cage building; less ammonia and odors, and lower mortality.
feature
Air Tube Manure Drying
Chore-Time’s Air Tube System features large holes, resulting in more total air volume across the belt, drier manure and more even air distribution to the hens during minimum ventilation.
Photos & Videos
Photos:
Videos:
Literature
Manuals
Specifications
White Papers
thumbnail

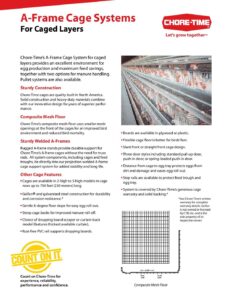

A-Frame Cage Systems
