Tunnel Doors for Breeders

Chore-Time’s tunnel doors tumble air for better mixing throughout the house.

Better In-House Air Mixing
  • Cyclonic air movement generates desirable airflow at bird level throughout the house.
  • No more dead zones at side- and end-walls such as are typical of curtain sidewall or double door houses.
  • Insulates about eight times better than a curtain during winter (when completely closed) for reduced energy costs.
  • During tunnel-assist mode, cold air is directed away from the birds until it has mixed with house air.
feature
Cost Effective and User Friendly
  • Laminated, composite door panels of 1.5-inch (38-mm) thick extruded foam insulation, sandwiched between thick pebbled fiberglass-reinforced plastic.
  • Structure provides greater rigidity and dent resistance.
  • Wall-mounted, continuous “P”-shape seal does not affect airflow when door is open, and is more tolerant of house imperfections for a tighter seal when door is closed.
  • Assembly (composite door, stainless steel hinges and nylon/galvanized hardware) is pest- and corrosion resistant.
  • Modular panel design allows maximum flexibility in door size to match house sidewall openings.
  • Pre-assembled door available for steel truss buildings or knee-brace applications.
Photos & Videos
Photos:
Videos:
Literature
Manuals
Specifications
White Papers
thumbnail
Cooling Systems, Air Inlets and Winches
(CT-2571/202102)
thumbnail

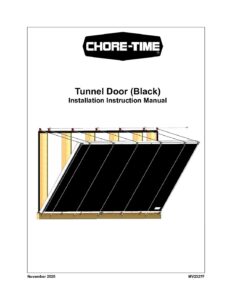

MV2327G Tunnel Door (Black) Installation Instruction
Jan 2023
thumbnail
Tunnel Door Specifications
