VALEGO™ Nest Systems for Eggs

Provide the most productive environment. Offering a secure and controlled environment, eggs are ensured a safer trip from the hen to the collection table.

Rack-Drive Expulsion (RDE) System
  • Patented rack-drive expulsion (RDE) system offers superior egg protection and moves out ALL the birds.
  • Requires less labor than competitive systems, helping to lower production costs.
feature
Film-Faced Plywood Construction
  • Walls and roofs are made with durable, A-grade, film-faced plywood.
  • Provides a sturdy, QUIET environment for birds.
  • Easier to clean and more durable than plastic or steel construction.
  • Dissipates moisture quickly to resist mold.
  • Two tier nests available in the VALEGO™ Pagoda™ nest style.
feature
High-Quality Materials
  • Galvanized steel frame assembled with TAPTITE® screws.*
  • Strong support structure with adjustable stainless steel legs.
  • Self-cleaning AstroTurf® pads.*

 *AstroTurf® and TAPTITE® are not owned or licensed by CTB, Inc. and are the sole property of their respective owners.

Slats

Plastic Slats

  • Plastic slats are nailed to a wooden frame.
  • Proven, highly durable design.
  • Easy to maintain.

Specification

  • Polypropylene, UV protected
  • Mesh size 1.6 x .9 inches (40 x 22 mm)

Dimensions

  • 38.6 x 24.6 inches (980 x 625 mm)

Slat supports

  • Galvanized steel beams
  • Available in every requested width

Slat Front

Specification

  • Film-faced plywood
  • Optional 1-3 row perforations

Dimensions

  • Front height from 11.8 inches (300 mm) to 31.5 inches (800 mm)
  • Thickness .5 inches (12 mm)
feature
Nest Configurations
  • RDE 58
  • RDE 58 flat roof
  • RDE 58 half/wall
  • RDE 58 with foldable platform
  • RDE 49
  • RDE 49 half/wall

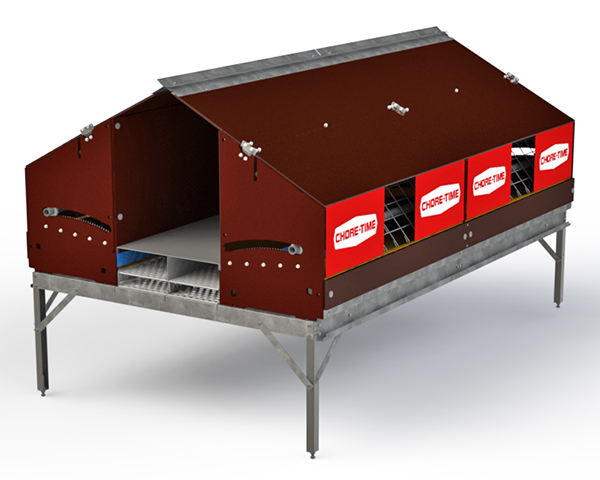

  • RDE 49 Pagoda™
  • RDE 49 Pagoda™ flat roof
  • RFE 52
  • RFE 52 half/wall
  • RFE 52 Pagoda™
  • RFE 52 flat roof
  • RFE 52 Pagoda™ flat roof



Egg Collection & Control
  • Chore-Time’s egg belts, expeller and controls comprise a total egg collection system that ensures a safe trip for the egg from the hen to the collection table.
  • The Control Unit programs the daily opening and closing of the expeller to optimize the period when hens have access to the nests.
  • The Control also initiates slight movement of the expeller during egg collection, which permits birds to stay in the nests yet helps to prevent accidental bird damage to the eggs.
A-Perch
Galvanized steel frame with five galvanized steel perches. Each perch is 98.4-inches (2500 mm) long and adds 41 feet (12.5 m) of perch capacity. Frame is foldable for higher flexibility and easier storage. Stable when placed on top of hardwood or plastic slats.
VALEGO™ Drive Unit
Motorized drive unit for two 250-mm woven or polypropylene egg belts. Safely transfers eggs onto egg collection table, cross conveyor or egg elevator. Variable speed from 2.62 to 13.12 ft/min (0.8 to 4 m/min).
VALEGO™ Drive Unit with Egg Collection Table
Motorized drive unit for two egg belts. Integrated table for manual egg packing. Variable speed from 2.62 to 13.12 ft/min (0.8 to 4 m/min)
VALEGO™ Conveyor
Transports eggs from any egg belt height to a convenient working height of egg collection table. Provides a bridge between different heights of egg belt and collection table. Operated by VALEGO™ drive unit motor. Safe and gentle handling of eggs by plastic rods.
VALEGO™ Frequency Converter
Frequency convertor adjusts the speed of egg belt. Large, eye-catching emergency stop ensures optimal safety. Both could be mounted on table and drive unit.
VALEGO™ Egg Elevator
Transports eggs from different heights. Flexible intake: eggs can enter the elevator from two egg belts, at any height. Flexible discharge: transfer height allows optimal discharge of eggs onto cross conveyor or egg collection table. Safe and gentle handling of eggs by plastic carriers.
VALEGO™ Egg Belt Return Unit
Return unit classic with spiral integrated in the return roller removes any remains left on egg belts. Return unit with brush for plastic egg belts; brushes off the dust and de-statics egg belts. Both return units are tension adjustable.
VALEGO™ Control Unit
Advanced control features for the expulsion systems of VALEGO™ nests. Programs the daily opening and closing of expulsion systems to optimize the period when hens have access to nests. Suitable for manual control. Optional monitoring of external switches and optional alarm signal to external control.
Photos & Videos
Photos:
Videos:
Literature
Manuals
Specifications
White Papers
thumbnail

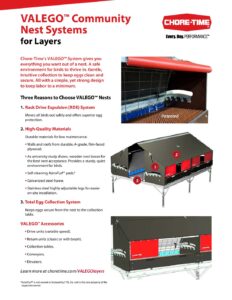

VALEGO Community Nest Systems for Layers
(CT-2625-202401)
thumbnail
VALEGO Pagoda Nest RDE-49 for Layers
(CT-2689/202211)
thumbnail

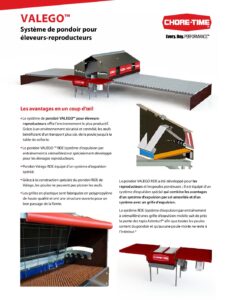

VALEGO Système de nid pour les reproducteurs
