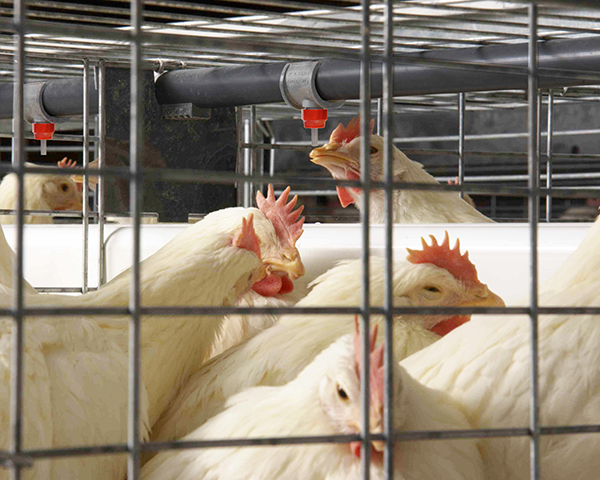

Nipple Drinkers for Caged Eggs

Automatic Flush

Automatic flush capability facilitates stimulating birds with fresh water in hot weather as well as helping to keep the drinker lines clean.

feature
Durable Construction
  • Constructed of high-quality, corrosion-resistant materials.
  • Nipple pipe has UV inhibitors for long-lasting service.
Superior Design
  • High volume regulator and large unrestricted pipe provide plenty of water for longer lines.
  • Saddle design provides a water-tight connection to the pipe without gluing or welding.
  • 360° trigger action provides easy access for all hens.
  • Availability of air removers with large diameter stand tubes ensures efficient removal of air from the lines.
feature
Easy Installation
  • Completely enclosed system uses pre-assembled pipe assemblies, including valves, that are ready to install.
  • Wide choice of pipe mounting methods engineered for different cage configurations and styles.
Optional Catch Trough and Catch Cups Available
Large Button Nipple
Chore-Time’s large button nipple holds a big bead of water that birds easily see.
Self-Filling Mini Drinker
Self-Filling Mini Drinker with large float ball snaps over drinker saddle.
Catch Cup
Catch Cup option for High Flow and Super High Flow systems.
Stand Tube Options
Stand Tube Options (from left) include folding, rigid and flexible styles.
VOLUMATIC™ Regulator
Same VOLUMATIC™ Regulator for both pneumatic and regular function. User can select default water pressure in case air pressure is interrupted.
Slope Compensator
Slope Compensator makes it easier to manage increased water column due to floor slope.
J-Type and Threaded Body Replacement Valves
J-Type and Threaded Body Replacement Valves are available for retrofit use.
Breather Cap
Breather Cap helps keep dust out of the water line and removes air faster.
Replaceable Filter Opaque or Transparent
Optional Pre-Assembled Filter Control Panels include a water filter, medicator hook-up and all the necessary plumbing. They are ready to hang and connect.
Flushable Filter
Optional Pre-Assembled Filter Control Panels include a water filter, medicator hook-up and all the necessary plumbing. They are ready to hang and connect.
Watering Bracket
Watering Bracket clamping design increases drinker line stability.
Fully Assembled Pipes and Channels
Nipple Drinkers for Caged Eggs
